SMD STRIPLIGHT IP20 SERIES

SMD IP20 STRIPLIGHT

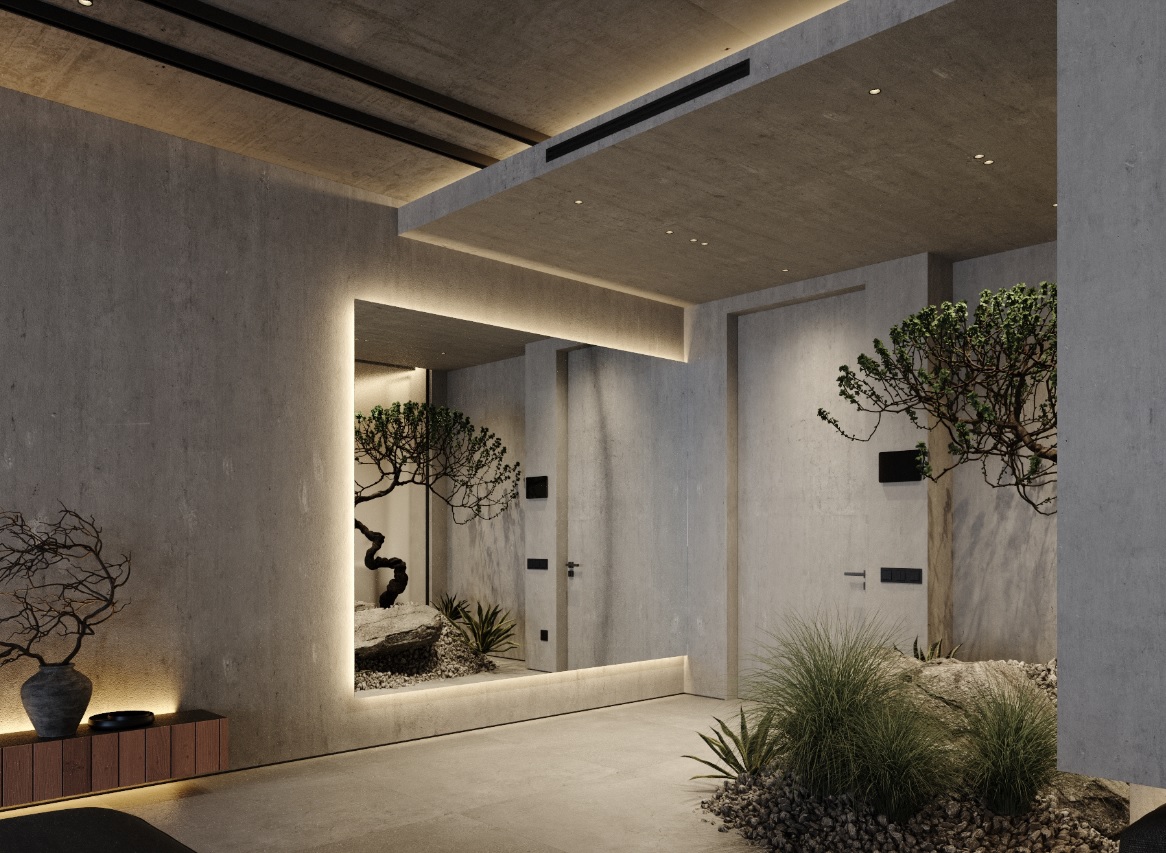

THIS TYPE OF STRIPLIGHT CAN BE USED INDOOR , ON CEILING , BEHINDE MIRROR , AND MANY OTHER PLACES. IT ALSO CAN BE A DECORATIVE LIGHT AND TASK LIGHT.





A

IT ALSO CAN BE USED WITH ALUMINUM PROFILE LIGHTING THAT CAN BE USED ON CEILING , WALLS AND FLOORING(IP67 TYPES).



LXN-STR-SMD-20-4.8W

SPECIFICATION

POWER: 4.8W.
Light Source: SAMSUNG .
VOLTAGE: 24V.
Color Temperature: 2700/3000/4000/6000K.
Light Output: 100lm/w.
WORKING TEMP : -20 TO 45.
PCB WIDTH: 8mm.
Beam Angle: 120.
CRI: Ra>90.
LIFE TIME: 50000.
IP Rate: IP20.

LXN-STR-SMD-20-9.6W

SPECIFICATION

POWER: 9.6W.
Light Source: SAMSUNG.
VOLTAGE: 24V.
Color Temperature: 2700/3000/4000/6000K.
Light Output: 100lm/w.
WORKING TEMP : -20 TO 45.
PCB WIDTH: 8mm.
Beam Angle: 120.
CRI: Ra>90.
LIFE TIME: 50000.
IP Rate: IP20.

LXN-STR-SMD-20-14.4W

SPECIFICATION

POWER: 14.4W.
Light Source: SAMSUNG.
VOLTAGE: 24V.
Color Temperature: 2700/3000/4000/6000K.
Light Output: 100lm/w.
WORKING TEMP : -20 TO 45.
PCB WIDTH: 10mm.
Beam Angle: 120.
CRI: Ra>90.
LIFE TIME: 50000.
IP Rate: IP20.

LXN-STR-SMD-20-20W

SPECIFICATION

POWER: 20W.
Light Source: SAMSUNG.
VOLTAGE: 24V.
Color Temperature: 2700/3000/4000/6000K.
Light Output: 100lm/w.
WORKING TEMP : -20 TO 45.
PCB WIDTH: 10mm.
Beam Angle: 120.
CRI: Ra>90.
LIFE TIME: 50000.
IP Rate: IP20.
