UPLIGHTS A SERIES

POWER: 1X3W - 1X4W - 1X5W.
Light Source: CREE.
CUT-OUT: 85mm.
SIZE: 95X116mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 8/15/30/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SS316.

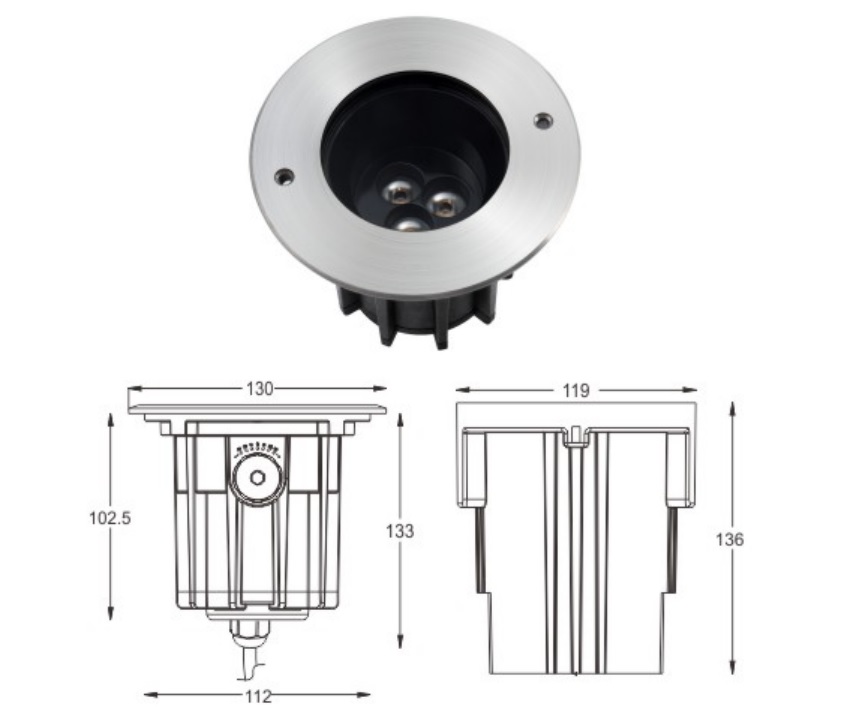

POWER: 3X2W - 3X3W - 3X4W.
Light Source: CREE.
CUT-OUT: 119mm.
SIZE: 130X133mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 8/15/30/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SS316.

POWER: 6X2W - 6X3W - 6X4W.
Light Source: CREE.
CUT-OUT: 147mm.
SIZE: 160X153mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 8/15/30/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SS316.

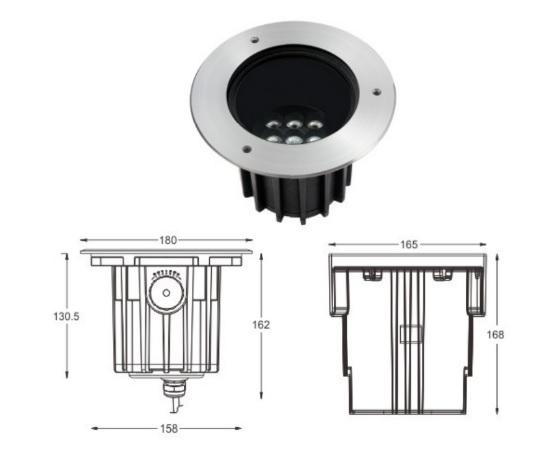

POWER: 9X2W - 9X3W - 9X4W.
Light Source: CREE.
CUT-OUT: 165mm.
SIZE: 180X162mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 8/15/30/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SS316.

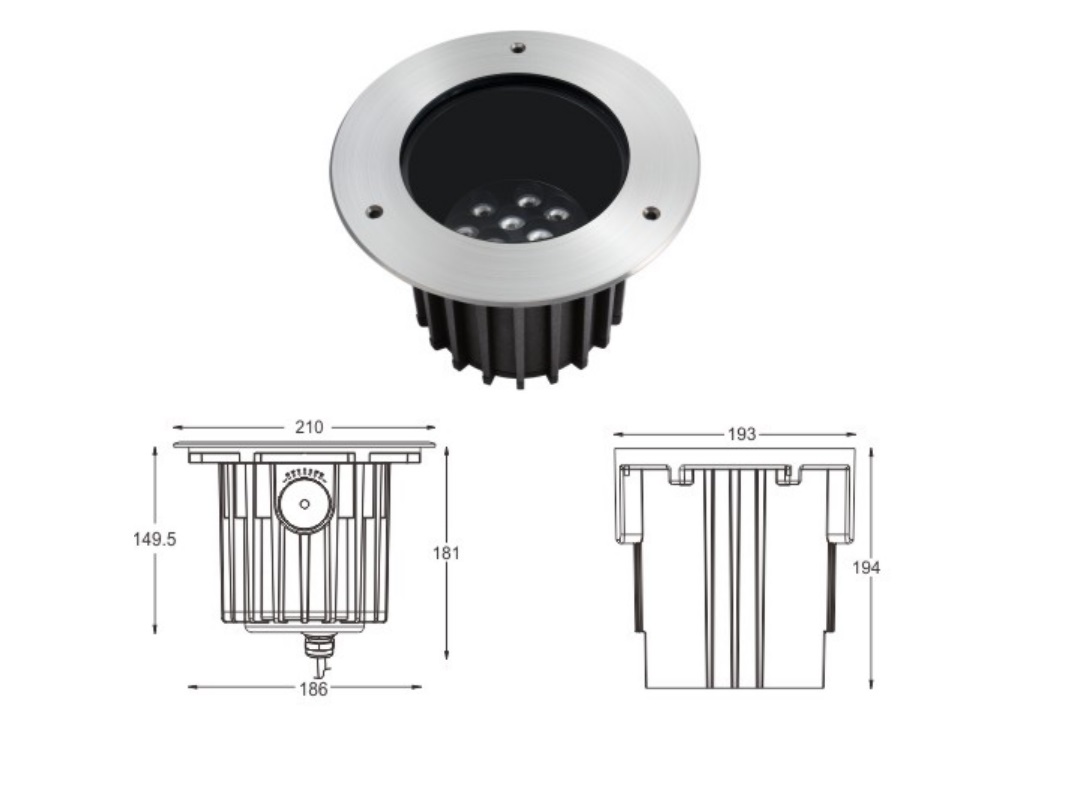

POWER: 12X2W - 12X3W - 12X4W.
Light Source: CREE.
CUT-OUT: 193mm.
SIZE: 210X181mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 8/15/30/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SS316.

POWER: 18X2W - 18X3W - 18X4W.
Light Source: CREE.
CUT-OUT: 233mm
SIZE: 250mmX190mm
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 8/15/30/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SS316.
