UPLIGHTS B SERIES

⠀

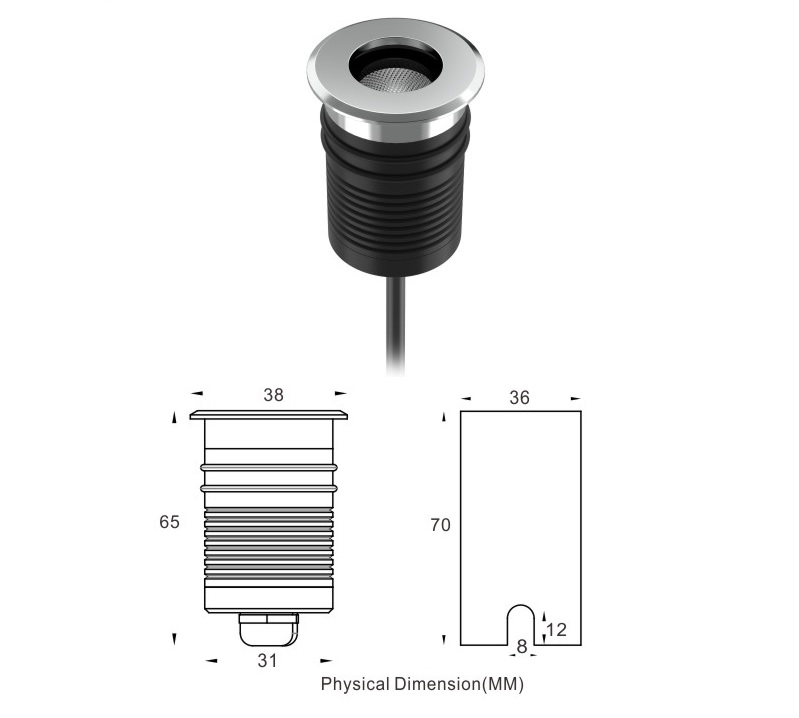

LXN-B-UPL01

POWER: 1W.
Light Source: CREE - OSRAM.
CUT-OUT: 31mm.
SIZE: 65X38mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL/OSRAM.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 12/15/30/25/40/60/120.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 04.
MATERIAL: SUS316.

LXN-B-UPL02

POWER: 2W - 3W.
Light Source: CREE - OSRAM - LUMINUS(COB/SMD).
CUT-OUT: 40mm.
SIZE: 69X52mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL/OSRAM.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 5/8/10/12/17/25/40/60/.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 09.
MATERIAL: SUS316.

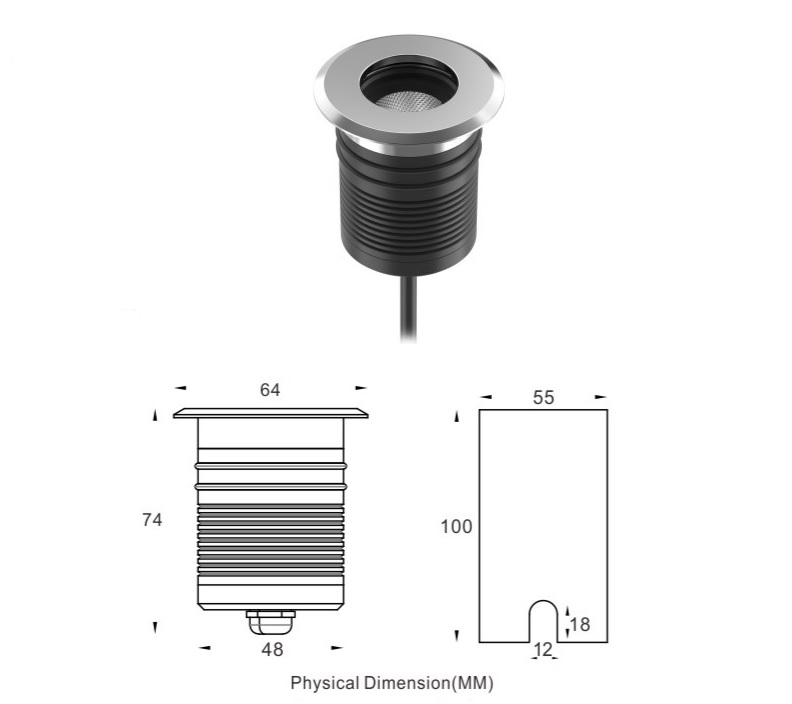

LXN-B-UPL03

POWER: 3W - 5W.
Light Source: CREE - LUMINUS(COB/SMD).
CUT-OUT: 48mm.
SIZE: 74X64mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL/OSRAM.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 6/15/24/38/60/60/120/.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 04.
MATERIAL: SUS316.

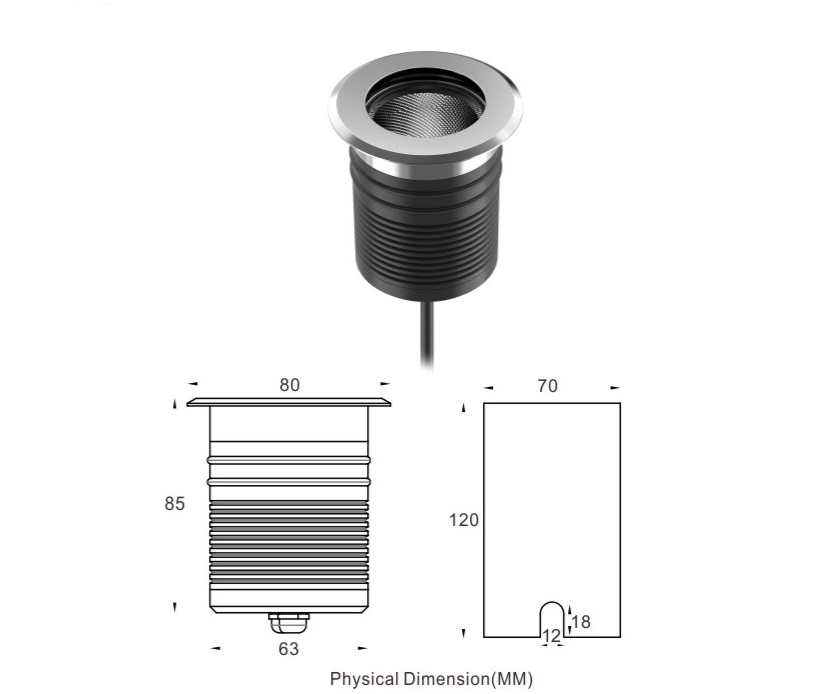

LXN-B-UPL04

POWER: 5W - 7W.
Light Source: CREE - LUMINUS(COB/SMD).
CUT-OUT: 63mm.
SIZE: 85X80mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL/OSRAM.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 4/6/9/10/15/25/30/40/60/90/110.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 04.
MATERIAL: SUS316.

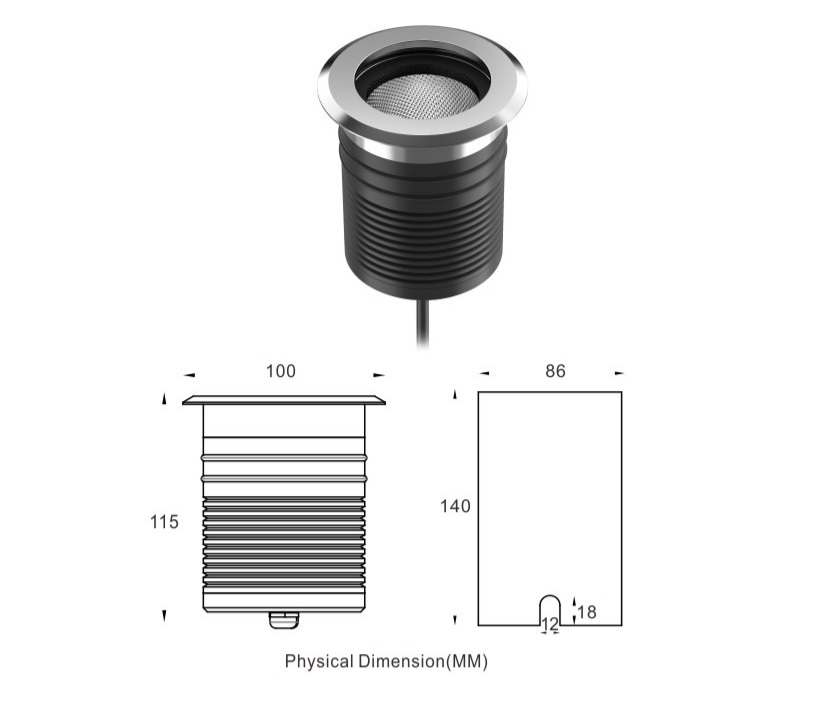

LXN-B-UPL05

POWER: 8W - 10W -12W.
Light Source: CREE - LUMINUS(COB/SMD).
CUT-OUT: 79mm.
SIZE: 115X100mm.
VOLTAGE: 220V/24V.
Color Temperature: 2700/3000/4000/6000K.
DRIVER: MEANWELL/OSRAM.
Light Output: 80-100lm/w.
WORKING TEMP. : -20 TO 70.
Beam Angle: 3/5/8/10/12/17/40/60.
CRI: Ra>90/80.
LIFE TIME: 35000.
IP Rate: IP67.
IK: 04.
MATERIAL: SUS316.
